Powerpacks
HYCON powerpacks are designed for professional users who expect maximum operating time,
low service cost and durability. Professional users expect machines to work when they
need them.
The concept of HYCON powerpacks is to offer high performance, compact, low weight packs and with a minimum of wearing parts.

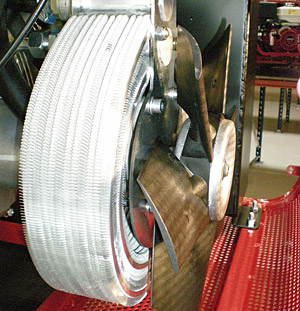

The heart of HYCON packs is the ring cooler that enables us to design a pack where all moving parts are mounted directly on the engine shaft.
This way we achieve 100% alignment which ensures the low wearing cost and the long lifetime of our packs.
Our ring cooler secures optimum cooling in all conditions and does not get clogged up by dirt etc and can be cleaned by high pressure washers. Also all coupling parts are protected inside a housing ensuring maximum lifetime.
A HYCON powerpack you can rely on.
Low Cost Demolition in its essence.

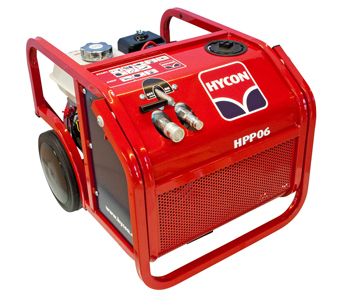

The fuel consumption is amazingly low. Want to work at low cost? HPP06 is the answer.
It is the ideal choice for professionals in light construction and rental who want power for little money.
The fuel consumption is amazingly low. Want to work at low cost? HPP06 is the answer.
Low Cost Demolition in its essence.
Technical Data
| Oil flow, l.p.m. | 1×18 |
| Max. pressure, bar | 110 |
| Engine | Honda 6.5 HP petrol |
| Flow | Adjustable |
| Starter | Recoil |
| Weight, kg | 54 |
| Noise level 1m LpA dB | 88 |
| Noise level LwA dB | 100 |

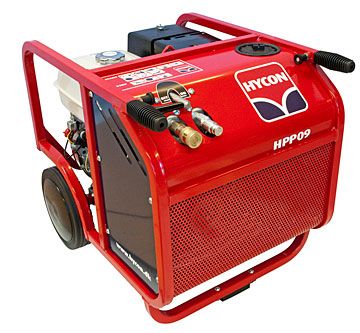

HYCON HPP09 is the most sold powerpack. It is used especially for rental, contractors,
municipalities, supply companies (power-water-gas-heat-sewage-telecom) etc.
who mostly use 20 l.p.m. tools like breakers, core drills, saws, submersible pumps etc.
It is very compact with small dimensions and low weight. Therefore it can be transported in any car, van etc.
The investment in this powerpack and a breaker is usually less than half the price of a 4m³ compressor and breaker, and the performance is the same. Integrated oil alert on engine oil level. HPP09 comes standard with the HYCON POR system (Power on Request) = automatic regulation of power.
Technical Data
| Oil flow, l.p.m. | 1×20 |
| Max. pressure, bar | 150 |
| Engine | Honda 9 HP petrol |
| Flow | POR (automatic) |
| Starter | Recoil |
| Weight, kg | 68 |
| Noise level 1m LpA dB | 88 |
| Noise level LwA dB | 100 |
HYCON HPP09 is the most sold powerpack. It is used especially for rental, contractors,
municipalities, supply companies (power-water-gas-heat-sewage-telecom) etc.
who mostly use 20 l.p.m. tools like breakers, core drills, saws, submersible pumps etc.
It is very compact with small dimensions and low weight. Therefore it can be transported in any car, van etc.
The investment in this powerpack and a breaker is usually less than half the price of a 4m³ compressor and breaker, and the performance is the same. Integrated oil alert on engine oil level. HPP09 comes standard with the HYCON POR system (Power on Request) = automatic regulation of power.
Technical Data
| Oil flow, l.p.m. | 1×20 |
| Max. pressure, bar | 150 |
| Engine | Honda 9 HP petrol |
| Flow | POR (automatic) |
| Starter | Recoil |
| Weight, kg | 68 |
| Noise level 1m LpA dB | 88 |
| Noise level LwA dB | 100 |

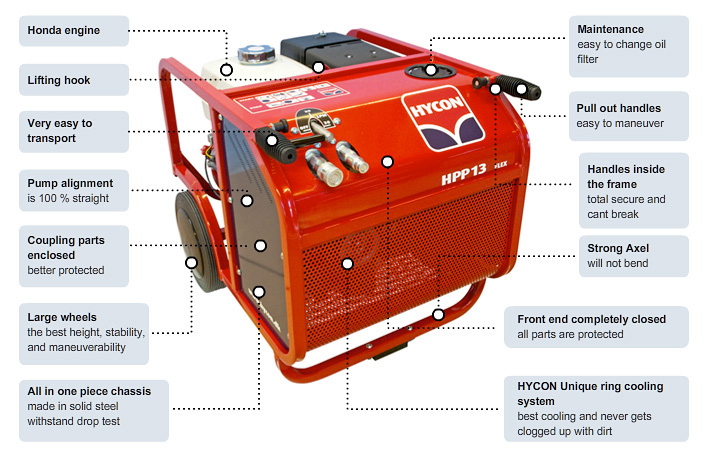

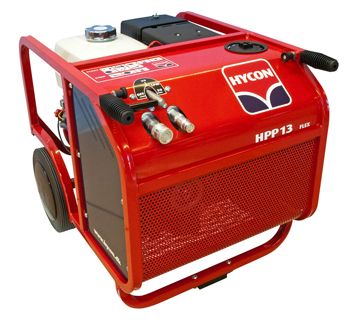

HYCON HPP13 FLEX is the bestseller in our FLEXLINE-series of powerpacks. It is used mainly
for contractors, rental, municipalities,supply companies etc. With its infinitely variable
flow adjustment from 0 to 30 l.p.m., the HPP13 FLEX can be
used for many tools.
The perfect power source for high performance tools like breakers, cut-off saws, core drills, submersible pumps, ring saws and diamond chain saws.
HPP13 FLEX is very compact, has low weight, and is easy to transport in any vehicle. Integrated oil alert on engine oil level.
Technical Data
| Oil flow, l.p.m. | 1×20-30 |
| Max. pressure, bar | 150 |
| Engine | Honda 13 HP petrol |
| Flow | Adjustable |
| Starter | Recoil |
| Weight, kg | 81 |
| Noise level 1m LpA dB | 89 |
| Noise level LwA dB | 101 |
HYCON HPP13D is a medium sized hydraulic diesel powerpack made for demanding users. This
powerpack gives you absolute maximum power to operate tools like breakers, submersible
pumps, cut-off saws, drilling tools, core drills, impact wrenches and many other tools.
Advantages:
- Easily transported inside a van
- ON-OFF valve for easy change of tool
- EXTREMELY easy to service – direct access to ALL parts
- Oil level eye
- Few wearing parts / all run in oil / low cost
- Very strong and sturdy steel frame
- High quality diesel engine
- Both recoil and electric start
Technical Data
| Oil flow, l.p.m. | 1×30 |
| Working pressure nominal, bar | 120 |
| Pressure relief valve, bar | 140 |
| Pump | Gear pump |
| Oil temperature Max. | 70° C |
| Hydraulic oil tank capacity,litres | Min. 6 / max. 8 |
| Diesel tank capacity,litres | 6.5 |
| Hydraulic system compl,litres | 9 |
| Filter system (filter element) | 25 Micron with by-pass |
| Engine | Lombardini LD15-440 11.0 HP |
| Flow | Adjustable |
| Dimensions (LxWxH) | 710x595x645 mm |
| Weight, kg | 96 |
| Starter | Recoil and electric |

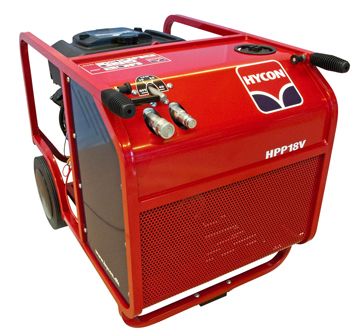

HYCON HPP18V FLEX features infinitely variable flow adjustment from 0 to 40 l.p.m. It is
extremely popular among users of high performance diamond tools for drilling and cutting
concrete. They are users who often need the high power and who want a robust, high quality
40 l.p.m. powerpack.
With its great flow range, the HPP18V FLEX can operate all tools – it is typically used for cut-off saws, diamond chain saws, ring saws and other 40 l.p.m. tools.
HPP18V FLEX has both electric and recoil start, so you can start it even with a dead battery.
The HPP18V FLEX is the best 40 l.p.m. powerpack on the market.
Technical Data
| Oil flow, l.p.m. | 1×20-30-40 |
| Max. pressure, bar | 160 |
| Engine | Vanguard 18 HP petrol |
| Flow | Adjustable |
| Starter | Recoil and electric |
| Weight, kg | 105 |
| Noise level 1m LpA dB | 89 |
| Noise level LwA dB | 101 |
HYCON HPP18V MULTIFLEX is the big brother in the FLEXLINE series of powerpacks. It is
intended for simultaneous operation of 2 tools.
MULTI means many. This powerpack has the most different flow settings on the market. No other features as much as 8 different flows: 1×10-15-20-30-40 and 2×10-15-20 l.p.m.
In other words: MULTIFLEX can operate any tool! With its compact measures it can be transported in any van. 2 persons can easily lift it.
With both electric and recoil start it can be started, even if the battery is dead.
Technical Data
| Oil flow, l.p.m. | 1×10-15-20-30-40, 2×10-15-20 |
| Max. pressure, bar | 160 |
| Engine | Vanguard 18 HP petrol |
| Flow | Adjustable |
| Starter | Recoil and electric |
| Weight, kg | 112 |
| Noise level 1m LpA dB | 89 |
| Noise level LwA dB | 112 |

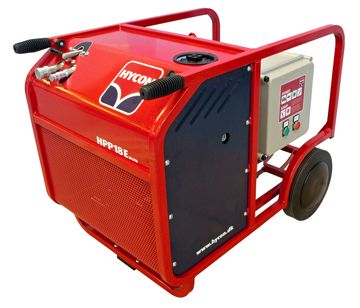

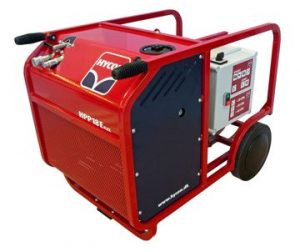

HYCON HPP18E is equipped with a powerful 11 kW motor. We offer two versions: 30 l.p.m. or 40
l.p.m.
It is mostly used indoor. Typically the customers are professional companies specialized in drilling/cutting concrete, who use ø400/ø450 mm cut-off saws, diamond chain saws and ring saws. Also widely used for ground water lowering.
HPP18E has a slow start function reducing the load during starting. It needs no water cooling as it has integrated oil cooler, which is a great advantage – especially in the winter time.
Technical Data
| Oil flow, l.p.m. | 1×30 or 1×40 |
| Max. pressure, bar | 160 |
| Motor | 11kW 25A (30lpm), 35A (40 lpm)/3x400V 50 Hz |
| Flow | Fixed |
| Weight, kg | 128 |
| Noise level 1m LpA dB | 86 |
| Noise level LwA dB | 98 |
HYCON HPP18E is equipped with a powerful 11 kW motor.
We offer two versions: 30 l.p.m. or 40 l.p.m.
It is mostly used indoor. Typically the customers are professional companies specialized in drilling/cutting concrete, who use Ø400/Ø450 mm cut-off saws, diamond chain saws and ring saws. Also widely used for ground water lowering.
In spite of the strong motor, the HPP18E is a compact powerpack easy to transport in any van. It is very strongly built, and can work even under the toughest conditions, because the motor and the electric box are approved for IP55 and IP54, respectively.
HPP18E has a slow start function reducing the load during starting. It needs no water cooling as it has integrated oil cooler, which is a great advantage – especially in the winter time.
Technical Data
| Oil flow, l.p.m. | 1x20-30-40 |
| Max. pressure, bar | 160 |
| Engine | Electric 11kW 25A (30lpm), 35A (40lpm) 3x400V 50 Hz |
| Flow | Adjustable |
| Weight, kg | 128 |
| Noise level 1m LpA dB | 86 |
| Noise level LwA dB | 98 |

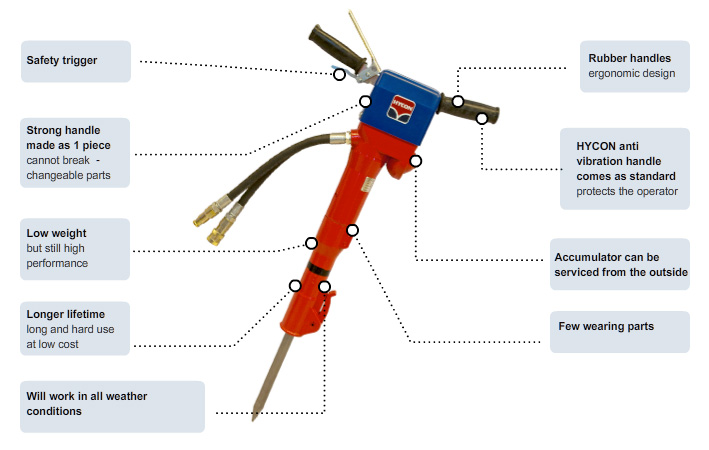

Breakers
A good breaker works when you need it.
HYCON breakers are designed to give maximum power, durability and best operator comfort.
The breakers are designed to withstand blank firing. This is a unique feature.
They have high performance compared to weight and come standard with anti vibration handles.
The unique PROLINE handle offers the operator a vibration level down to as little as 4.8 m/s², which give maximum protection and less fatigue. The result is higher efficiency – you get more work done.
The breakers have very few wearing parts ensuring the lowest lifetime cost possible. A HYCON breaker gives you the best TCO (Total Cost of Ownership).
Quality is never an accident – it is always the result of intelligent effort.

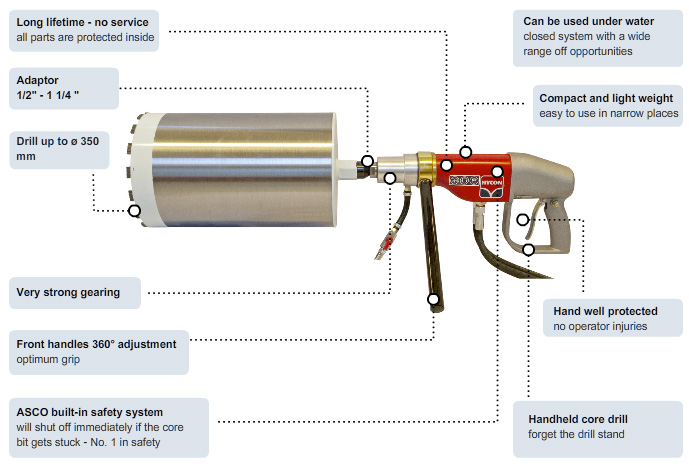

Core Drills
With a HYCON hydraulic handheld core drill you will achieve a significant improvement of
your profits as there are no costs for setting up a rig.
The performance of the core drill allows for drilling of holes up to ø350 mm in all
materials – also with reinforcement.Therefore it is only necessary to invest in ONE core
drill for many different kinds of jobs.
All parts run in oil – a guarantee for long life and low service costs. The tool is totally unaffected by water, dust etc. It will even work under water.
The core drill offers top safety with the built-in ASCO System (Automatic Safety Cut off). The tool automatically cuts off if the core bit jams – no injury to the operator.

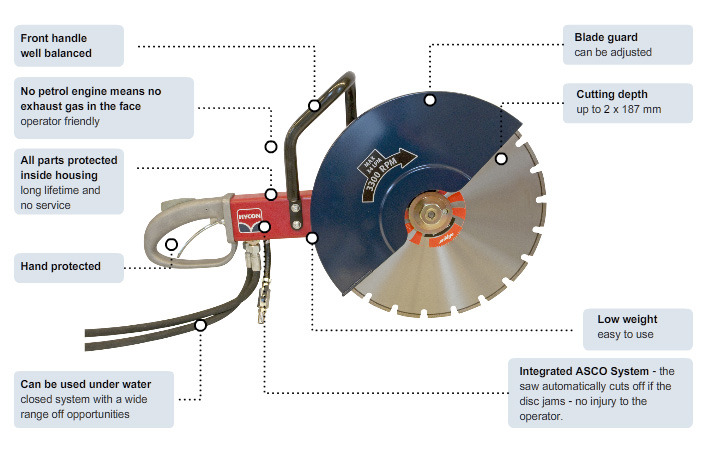

Cut-Off Saws
The hydraulic cut-off saw from HYCON is available in 3 versions 14”, 16” and 18”.
All types can be used for horizontal and vertical cutting.
They cut all types of concrete, steel, bricks, asphalt etc.
Cutting power up to 18 HP.
A hydraulic cut-off saw is a very sturdy tool intended for cutting even under the most extreme conditions. It is completely unaffected by water and dust, and all parts run in oil.
The saw is built for hard use day after day without breakdowns. The fact that the saw is always working and does not require service means higher profits than with e.g. a petrol saw.
Hydraulic saws have no heavy petrol engine blocking the view and are often difficult to start.
Hydraulic saws have no vibrations, no noise and no exhaust to your face. They have no airfilter getting clogged up with dust and require no service. They do not need 2 stroke petrol on the jobsite.
The cut-off saw offers top safety with the integrated ASCO System.

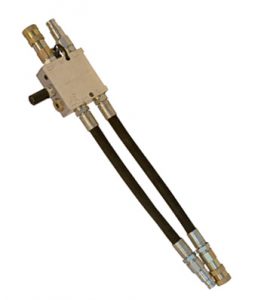

Oil Flow Divider
The HYCON HFD oil flow divider is used to protect the hydraulic tool
against overload when it is connected to excavators etc.
The HYCON oil flow divider has 3 built-in functions:
- The regulation valve regulates the flow to the tool
- The pressure relief valve ensures max working pressure in the tool
- The check valve ensures that the tool does not work the wrong way around (reverse)
Overload is the greatest risk of damage to hydraulic tools when they are connected to excavators, trucks etc. The HYCON HFD oil flow divider guarantees the expected life of the tool.
Technical Data
| Pressure relief valve (power source), bar | max 240 |
| Oil flow in (power source), l.p.m | max 80 |
| Pressure relief valve, bar | 160 |
| Oil flow out, l.p.m | 20, 30 or 40 |
| The oil flow is regulated by | Standard is 20 l.p.m. |

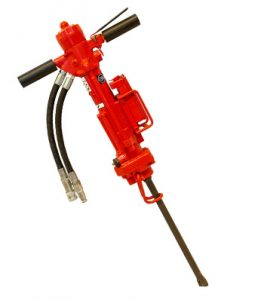

Rock Drill
The HYCON HRD20 rock drill is the only tool on the market with built in air flushing and
4 different settings of blow frequency and rotations. The investment in a HYCON HRD20
rock drill and a HYCON powerpack is therefore the best investment on the market.
The rock drill is characterized by a very high performance in relation to weight, and its high quality means long life. The drill rods are hex 22x108 mm, and therefore all standard drills can be used.
Maximum recommended drilling performance is Ø45 mm and approx. 3 m deep. Depending on the circumstances, the rock drill can reach a drilling speed of 3½ – 10 cm per minute. For holes deeper than 800 mm it needs additional air supply.
Technical Data
| Oil flow, l.p.m. | 25-30 |
| Working pressure, bar | 115 |
| Max pressure, bar | 150 |
| Tool chuck size, mm hex | 22x108 |
| Rotation | Counterclockwise |
| Weight, kg | 20 |
| Noise level LpA dB | 95 |
| Noise level LwA dB | 107 |
| Air supply | max. 0.08 m³/min/2 bar |
| Vibration level, m/s² | 23.6 |

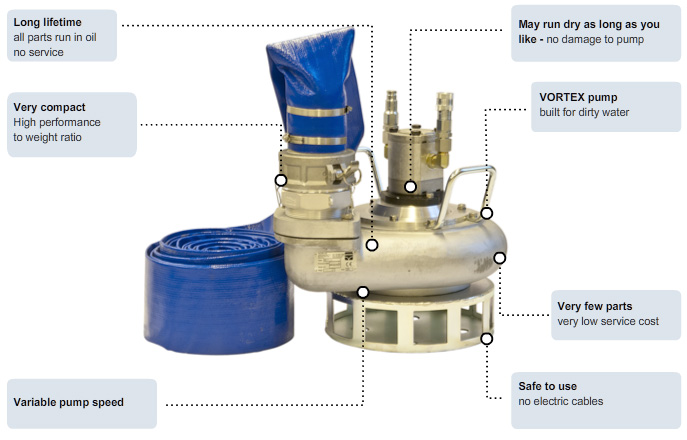

Submersible Pumps
Hydraulic submersible pumps are designed for the high demands in the construction industry.
HYCON pumps are VORTEX pumps. VORTEX pumps are designed especially for dirty water with even very large solids. They have less wear on the impeller due to the Vortex design.
Hydraulic pumps may run dry all Day without breaking down.
The impeller at top sets the water in a circular movement and by centrifugal force a centre of air shaped like a cone will occur.
This way there is very little contact between the water and the impeller, and wear is greatly reduced compared to other types of pumps.
Pumps of the special VORTEX design have longer life and can pump larger solids.
The pumps have a very big capacity – up to 204m3 per hour.
Can be connected to HYCON power packs or excavators, trucks, tractors, etc.
