Reverse Circulation Hammers & Bits

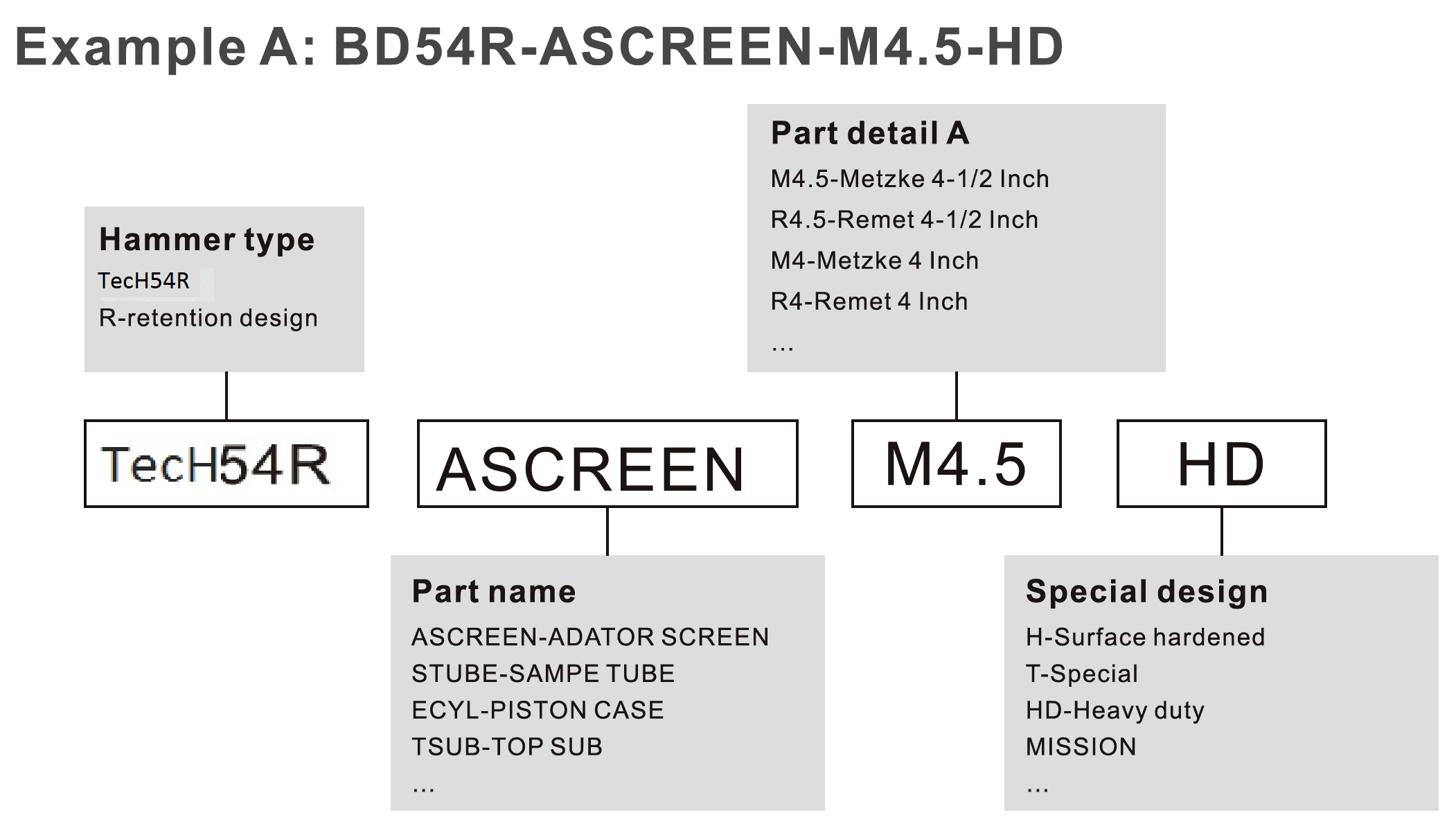

Product codes are a valuable tool to describe and identify the product. In the code structure we have tried to describe the product features with an alphanumeric system and not always 100% logical, but with the attached key you will be able to find the product you are looking for or alternative products.

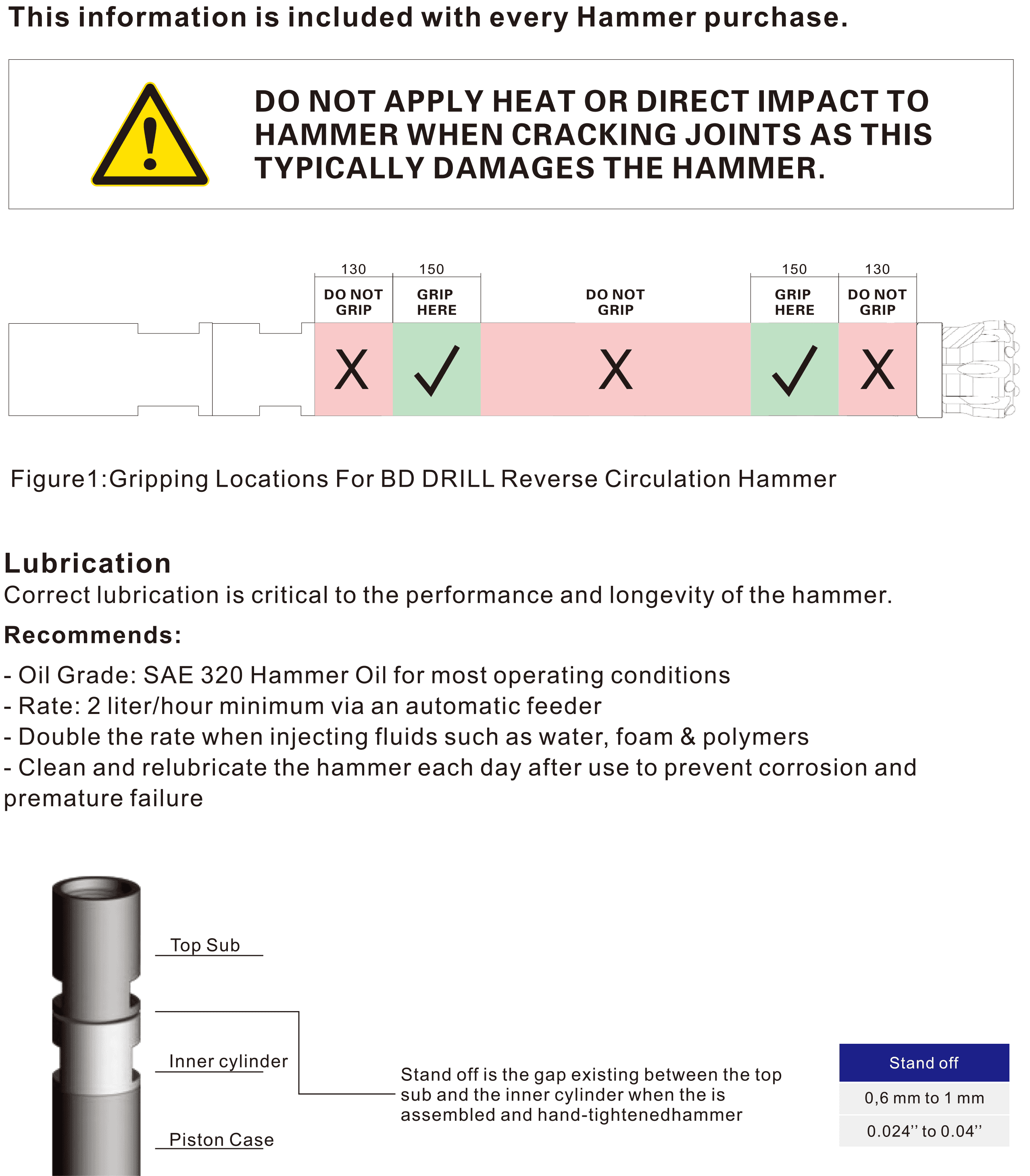

When breaking a Hammer down, avoid placing breakout tools in the mid section of the cylinder (barrel). Recommended breakout points are 130mm from each end of the cylinder. Wrapy around chain type breakouts are recommended (see diagram). When holding bits for breakout, use a secure plate or pot to grab the bit head, but never on the gauge row buttons. This information is included with every Hammer purchase.

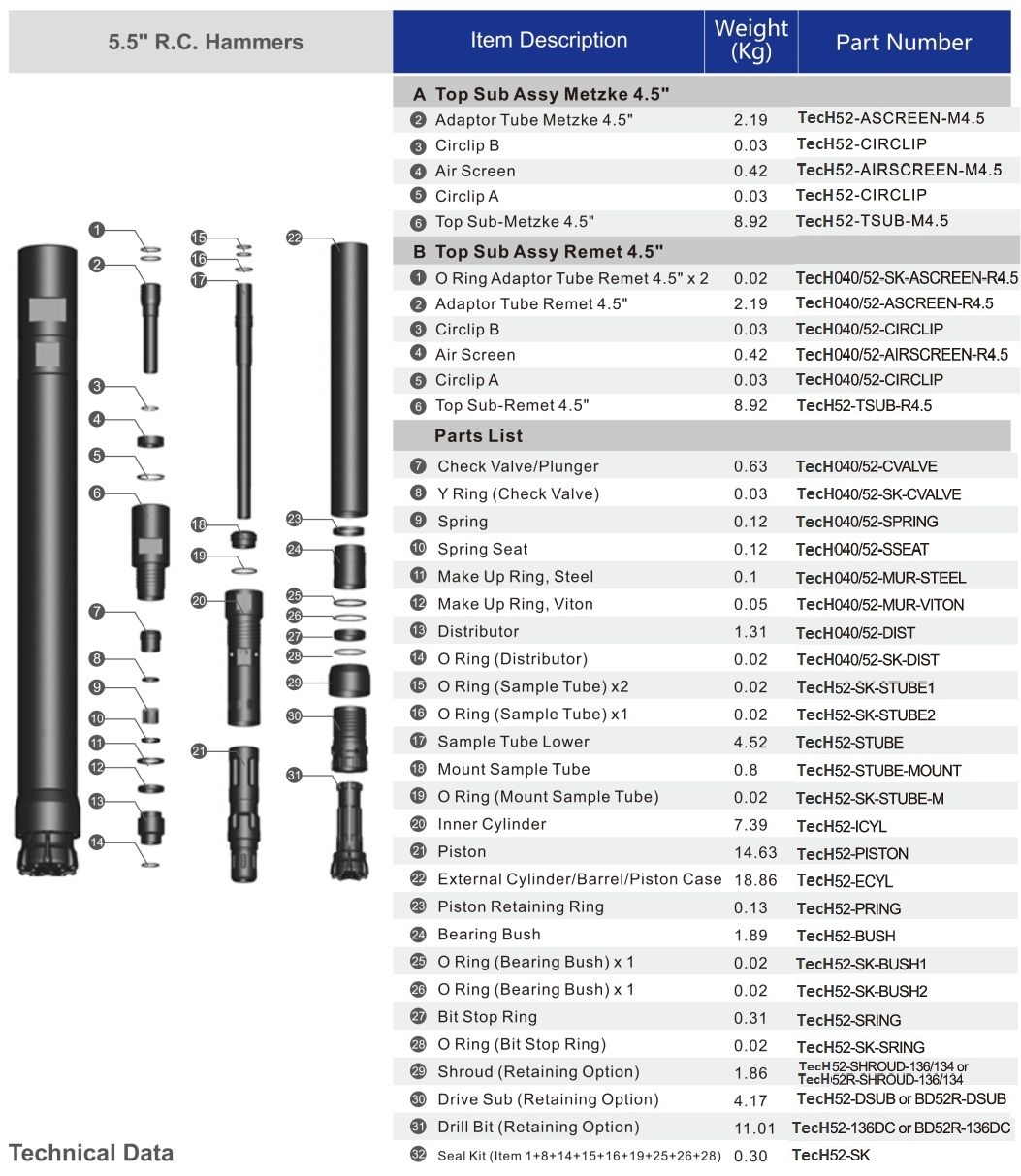

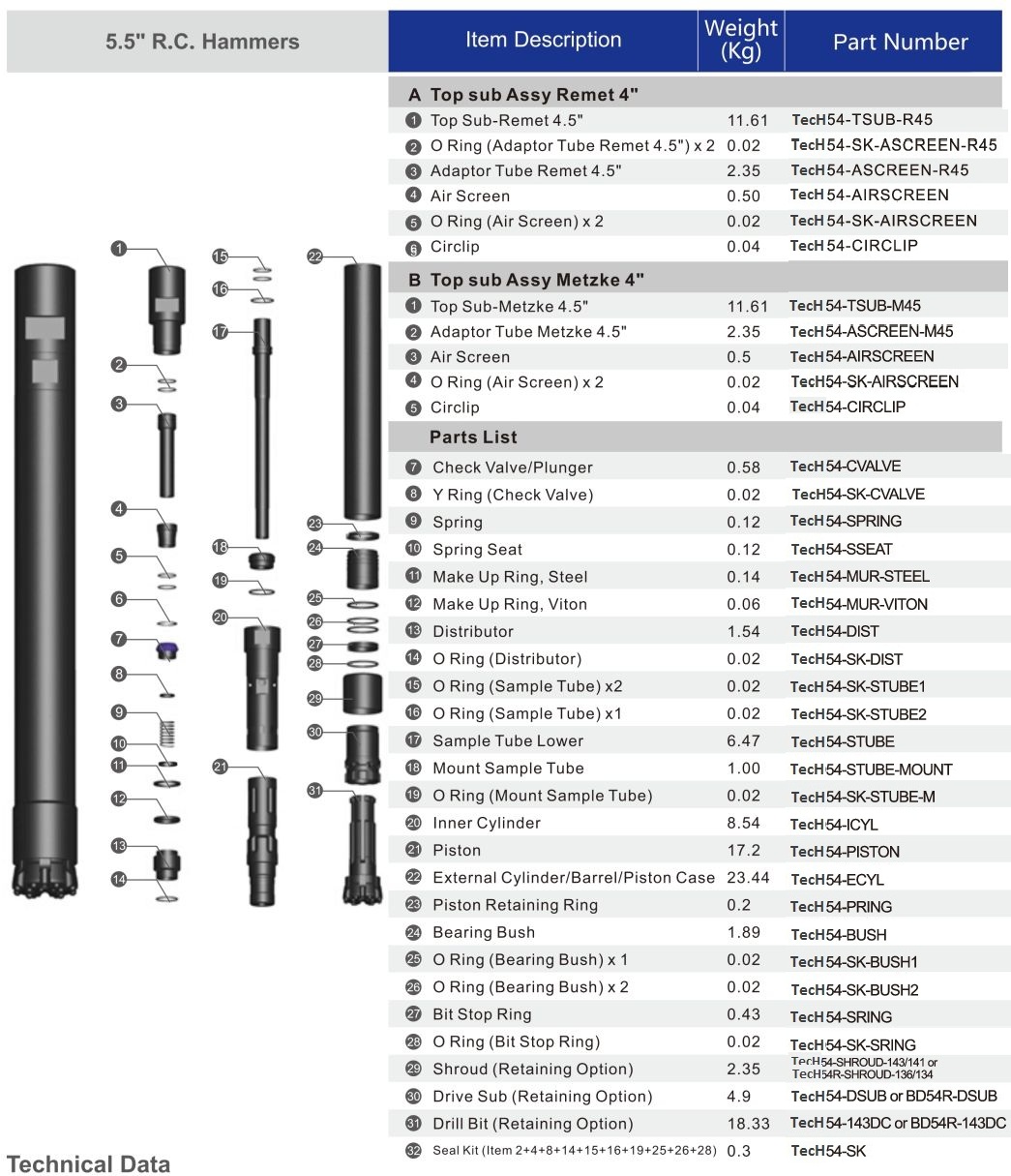

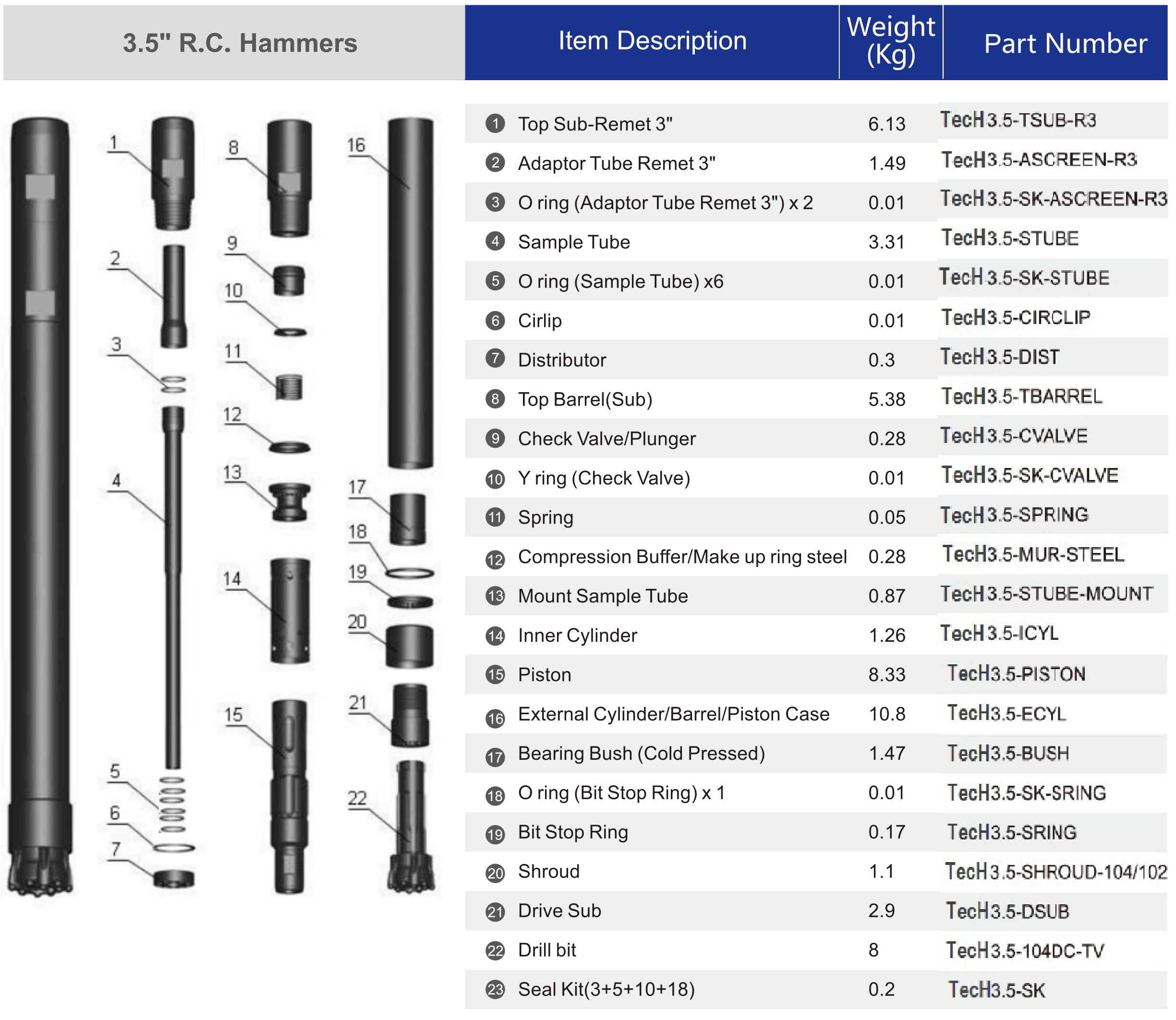

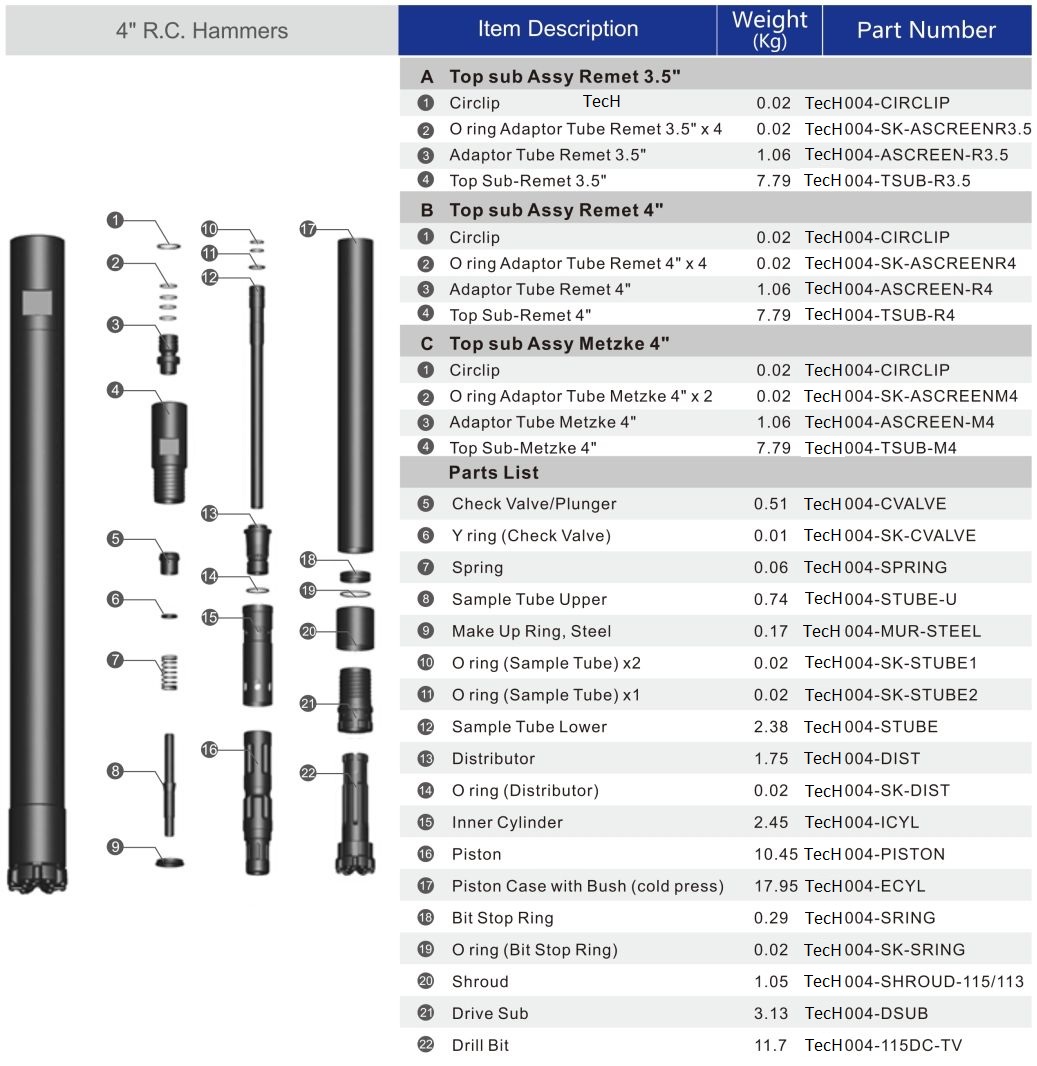

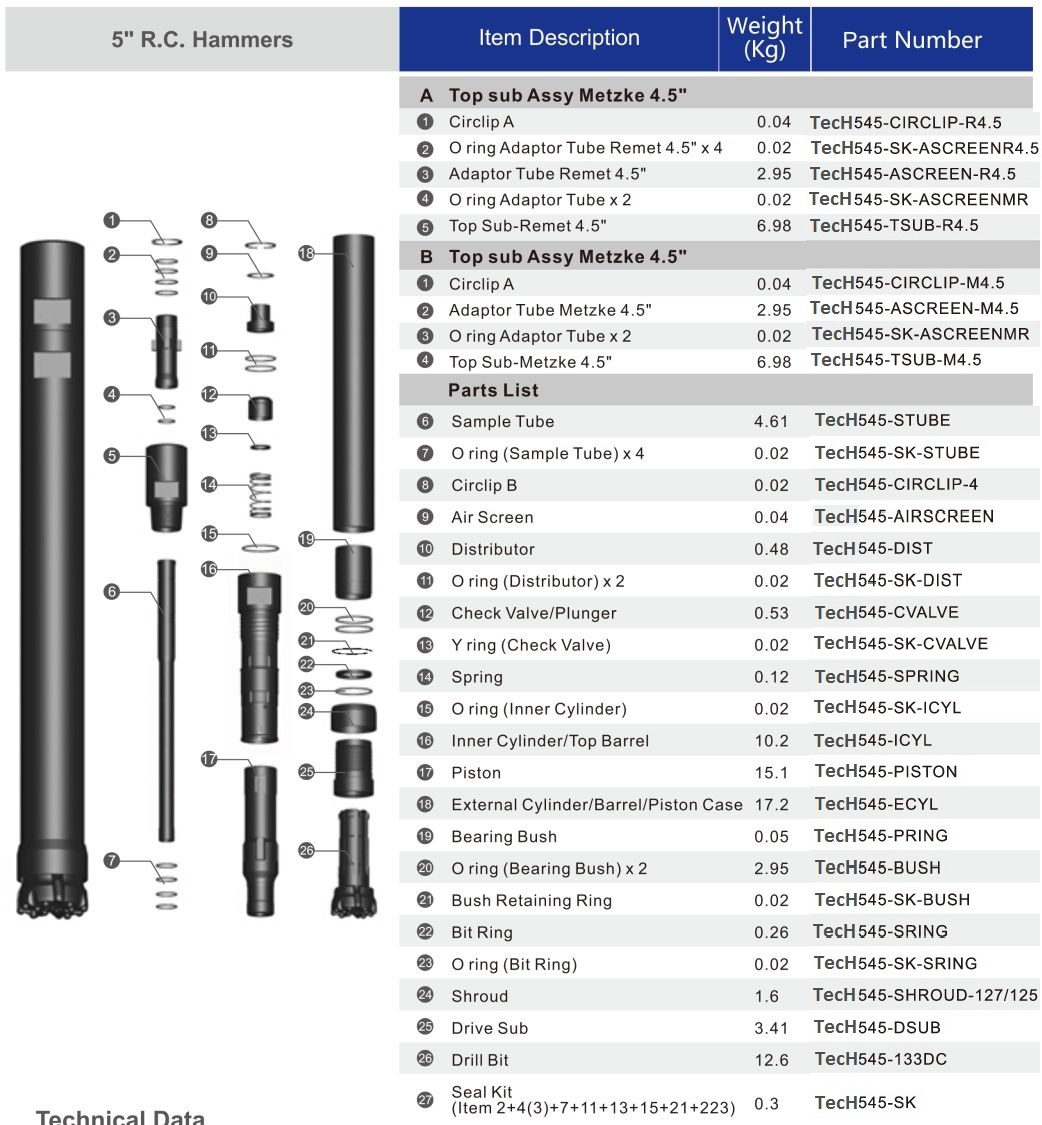

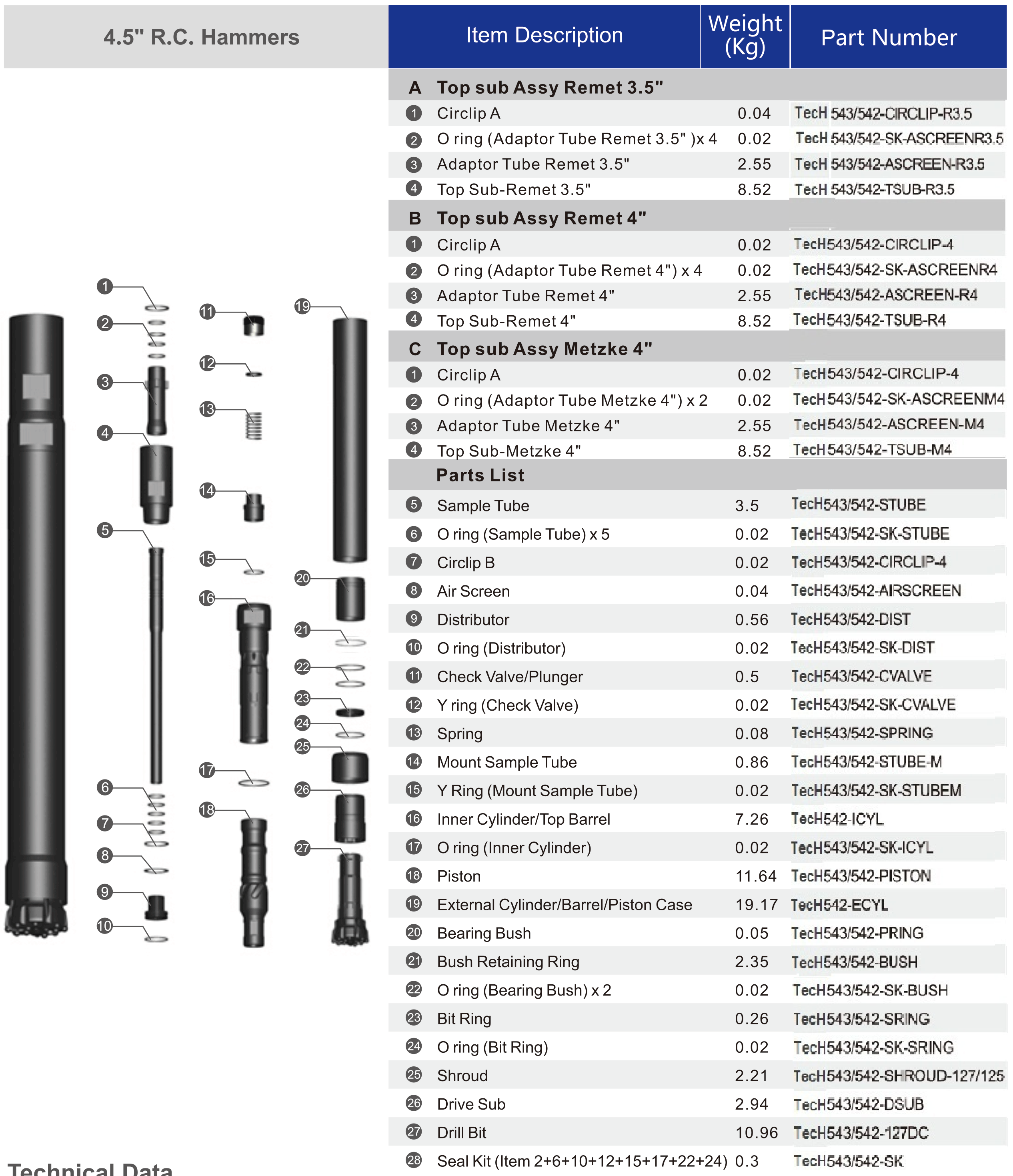

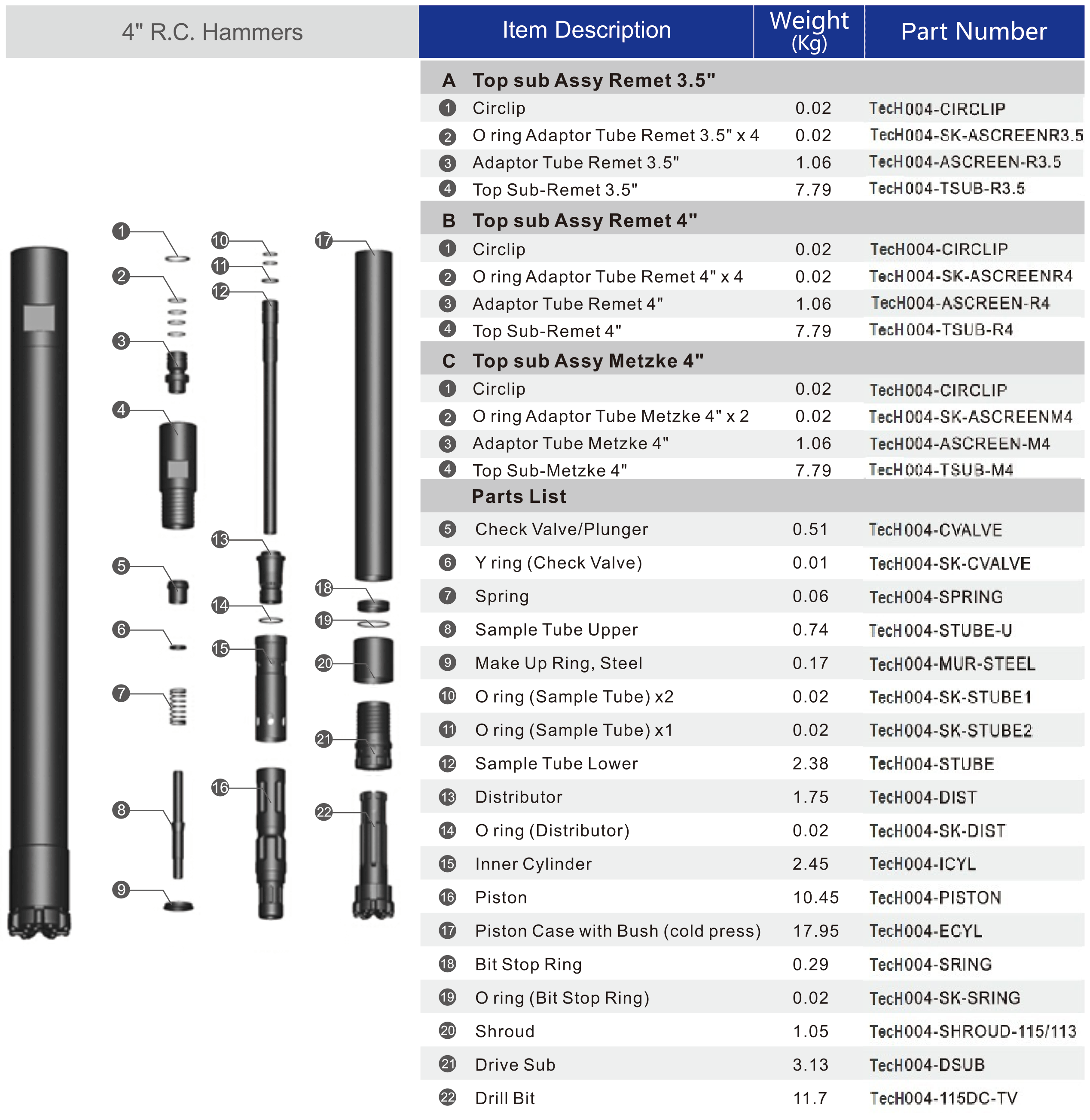

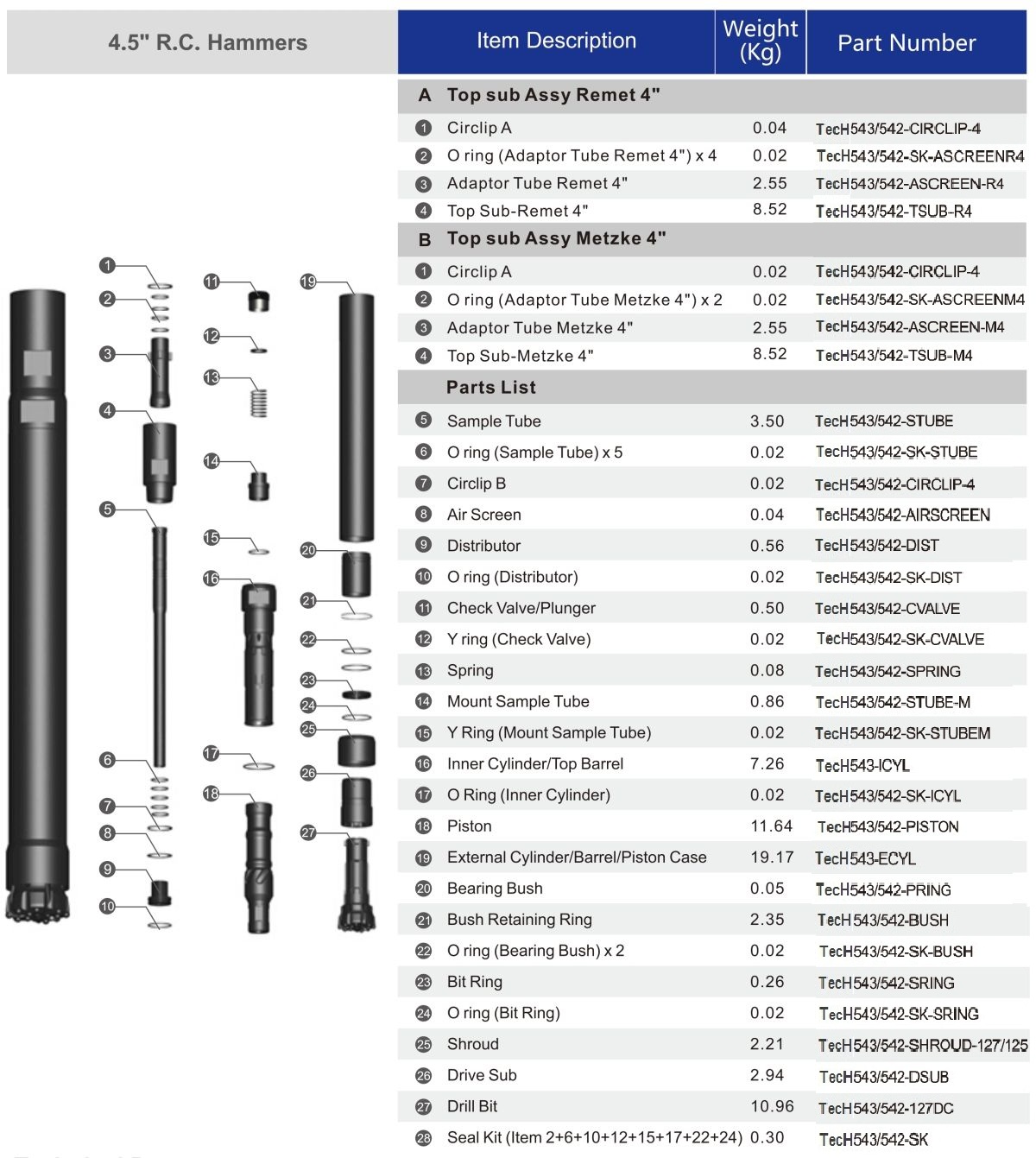

HRC Hammers

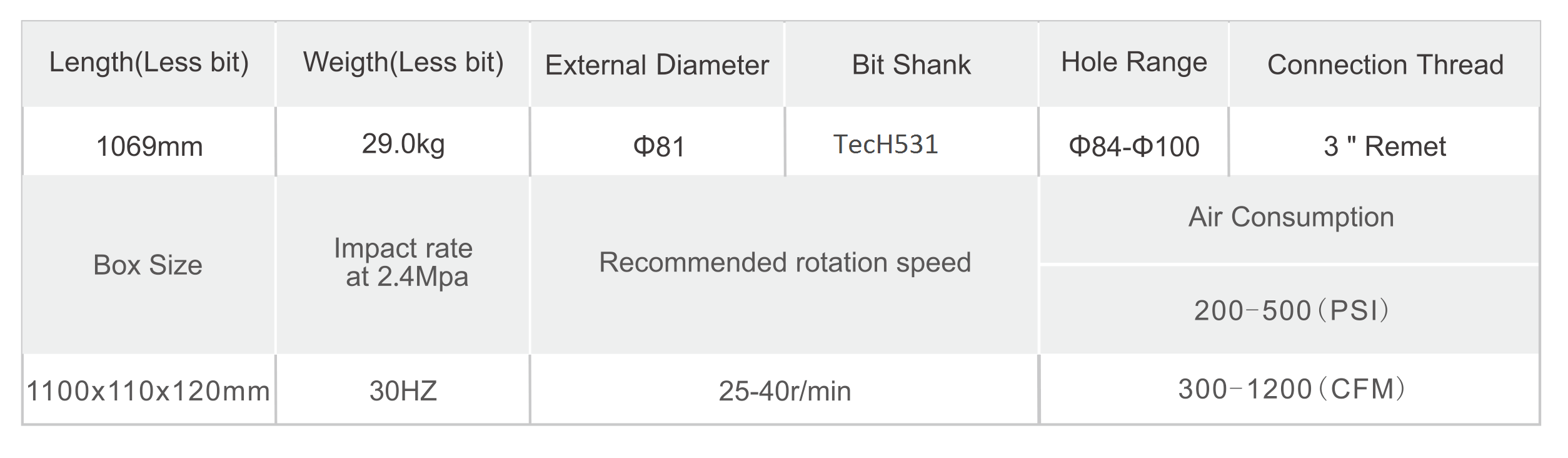

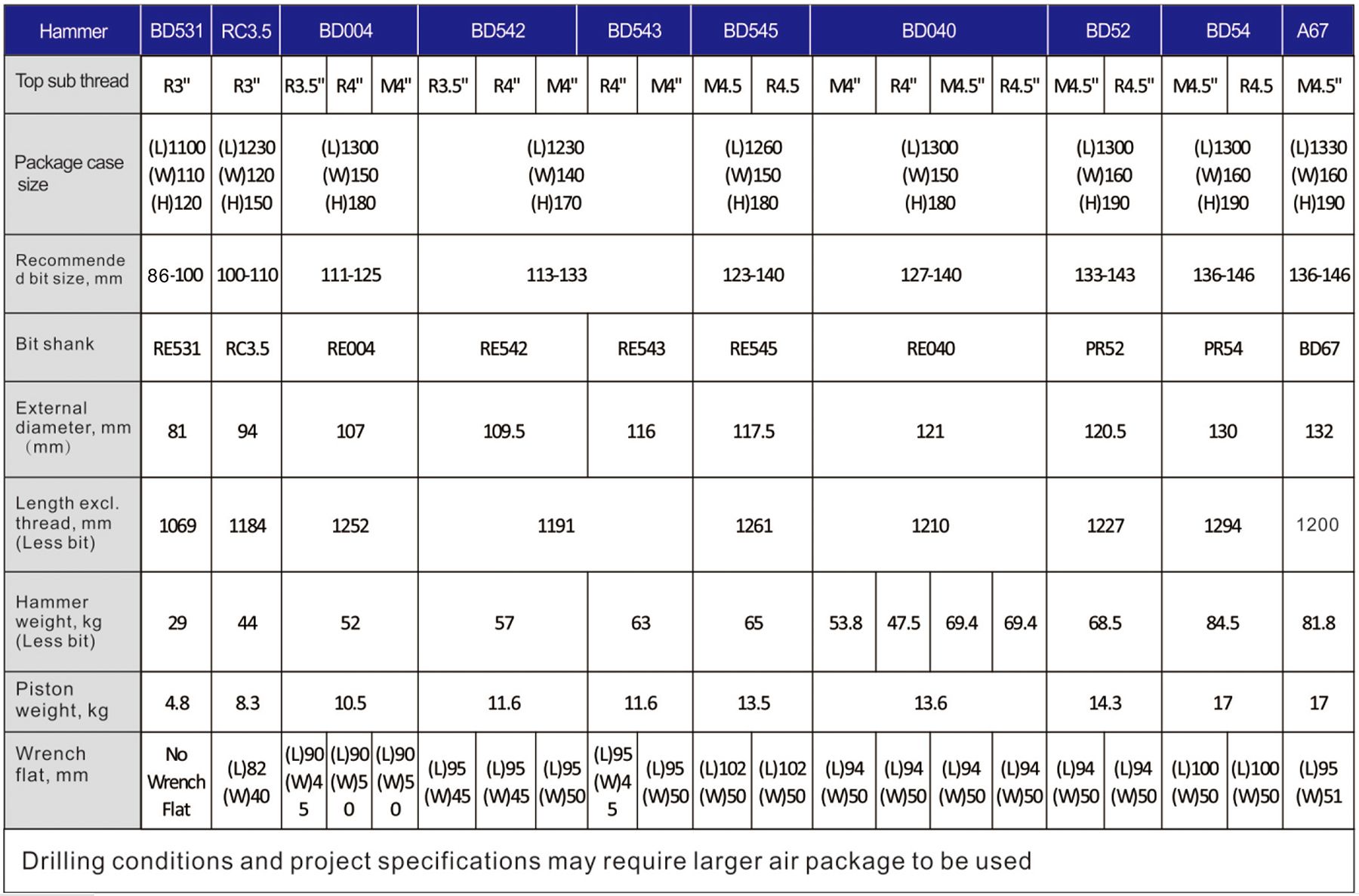

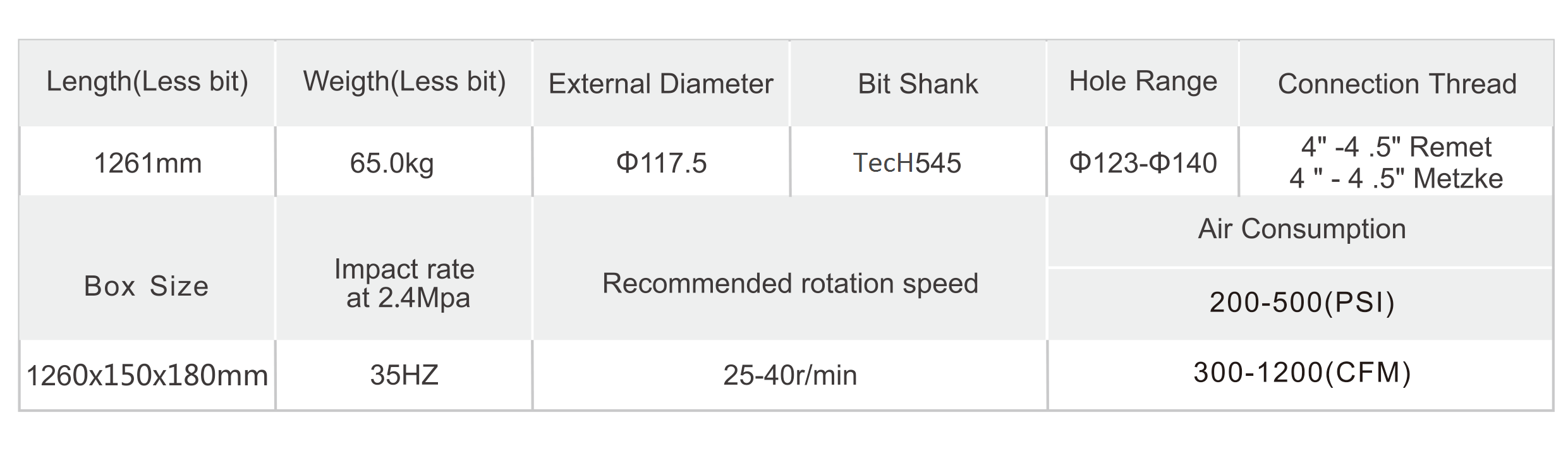

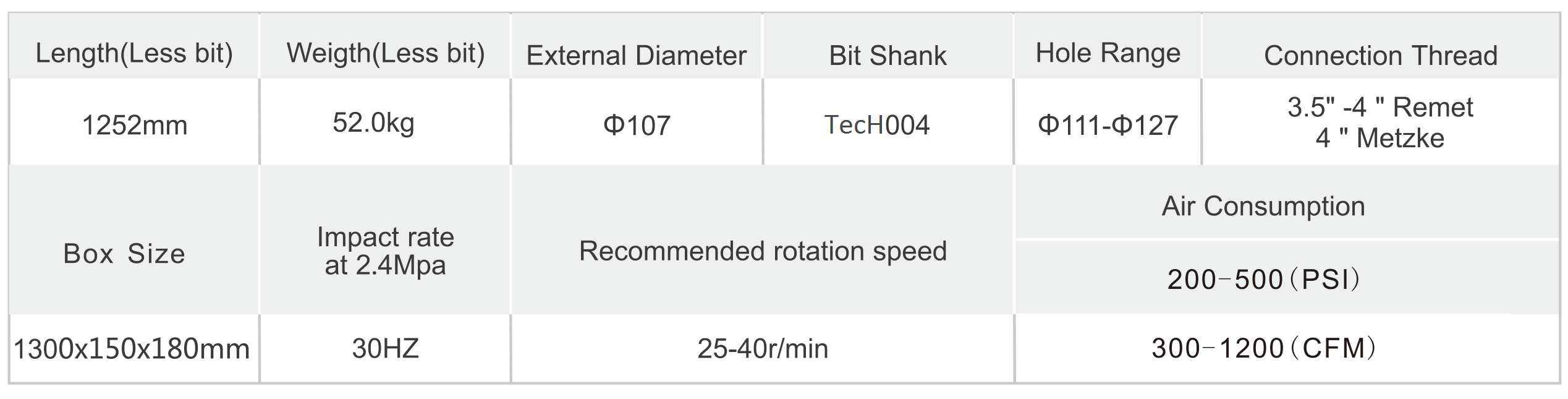

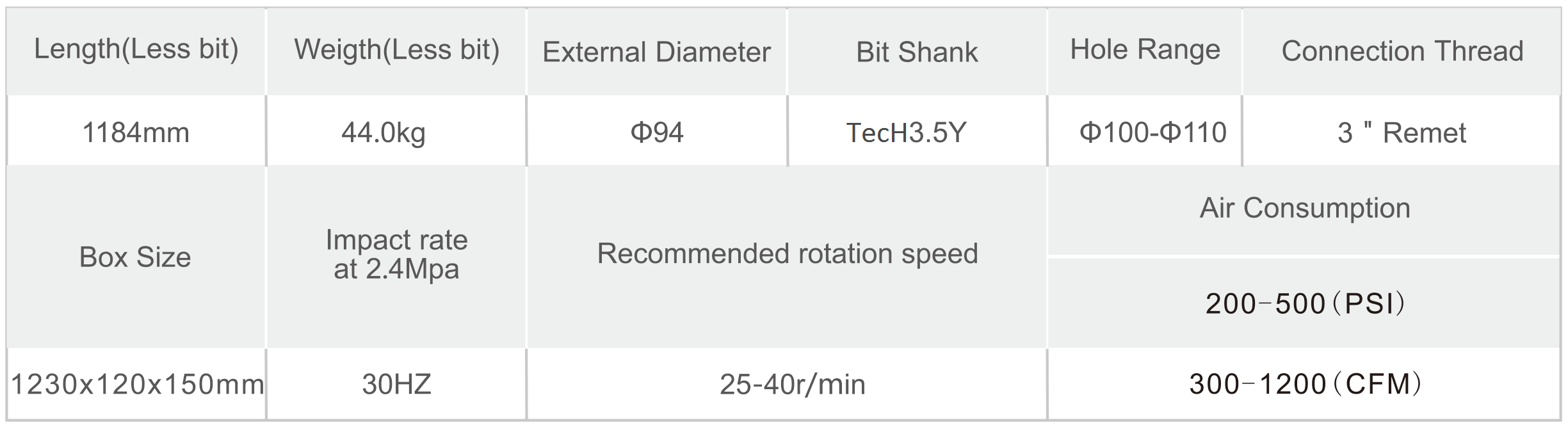

Technical Data

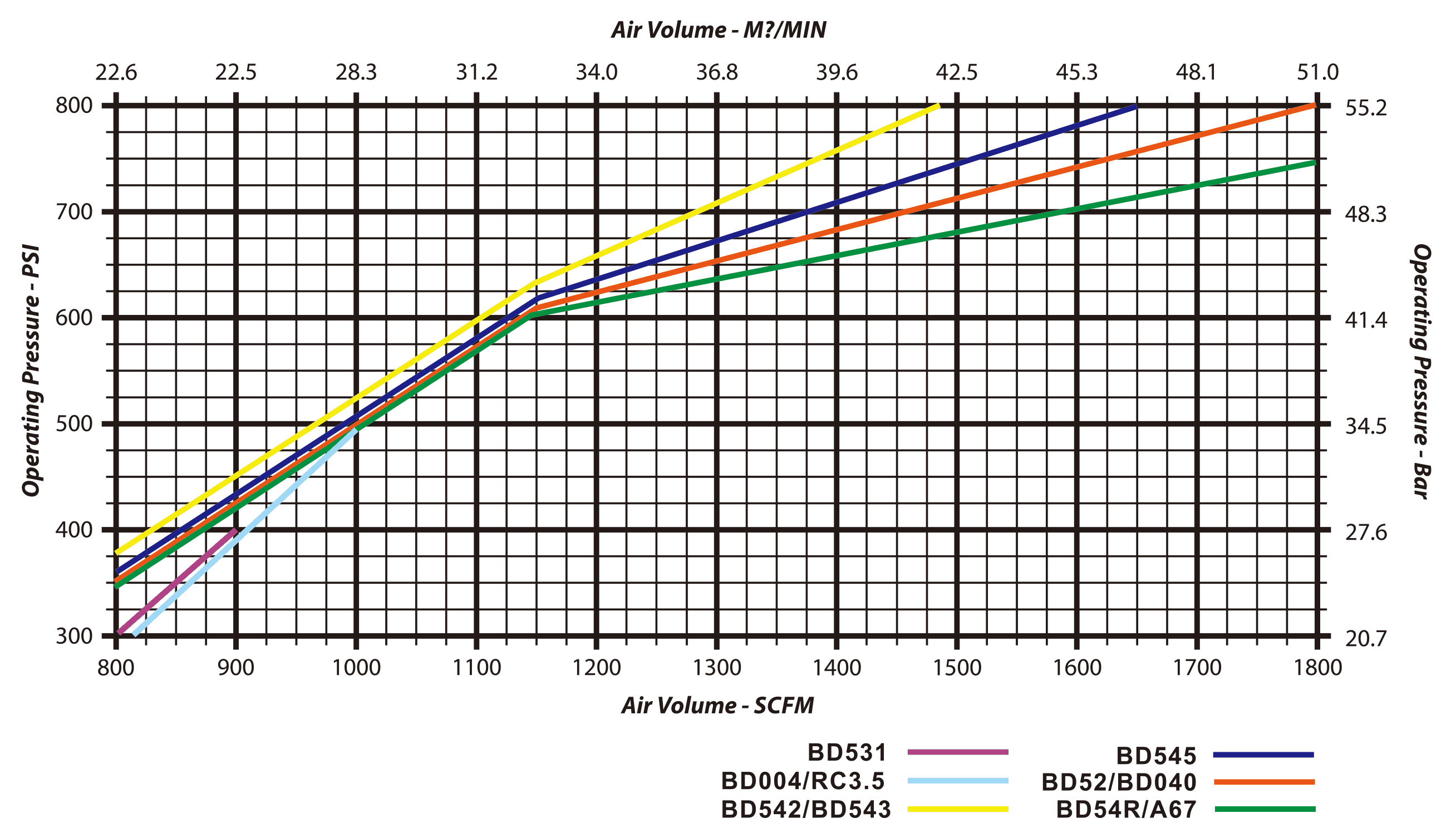

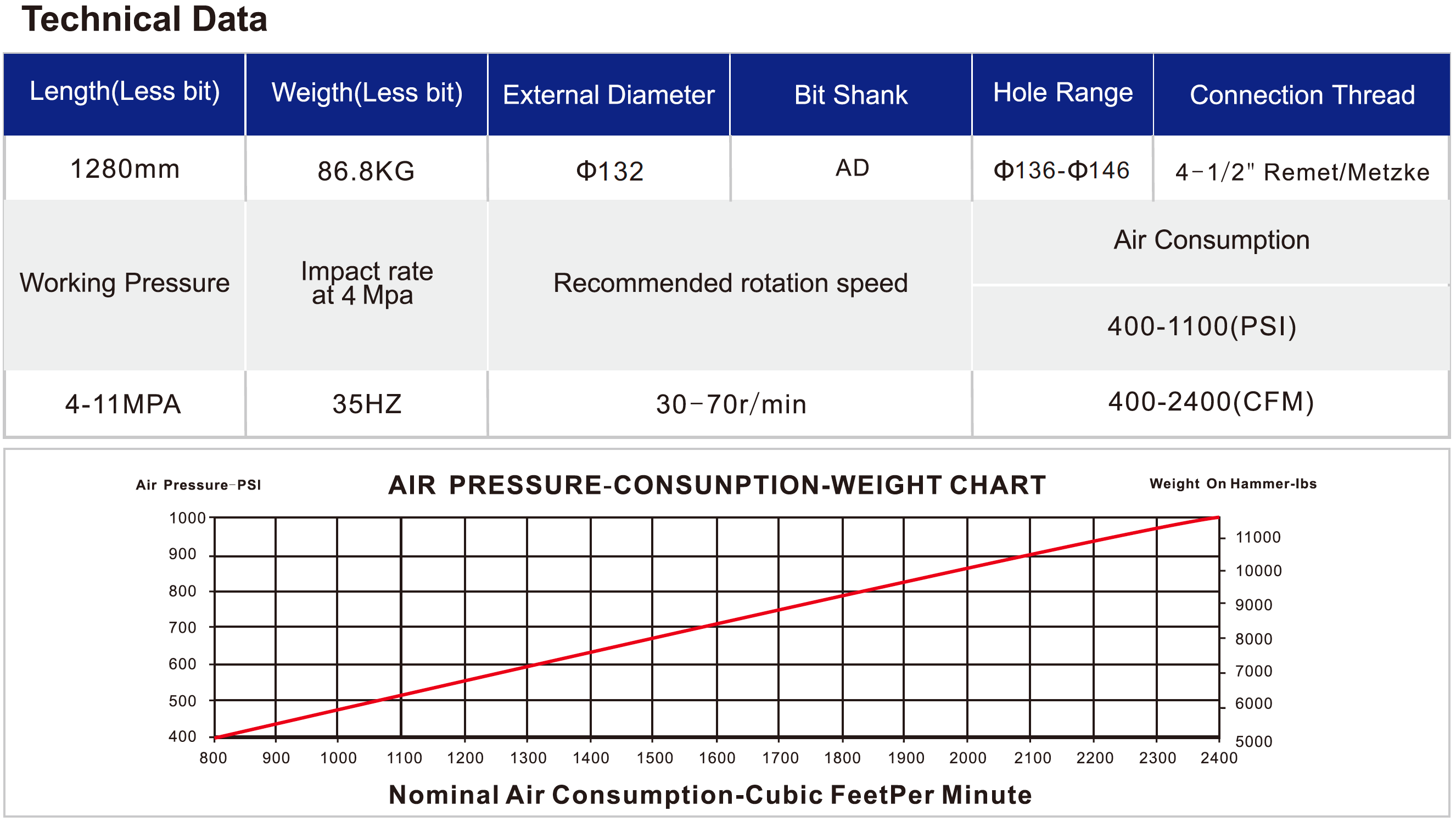

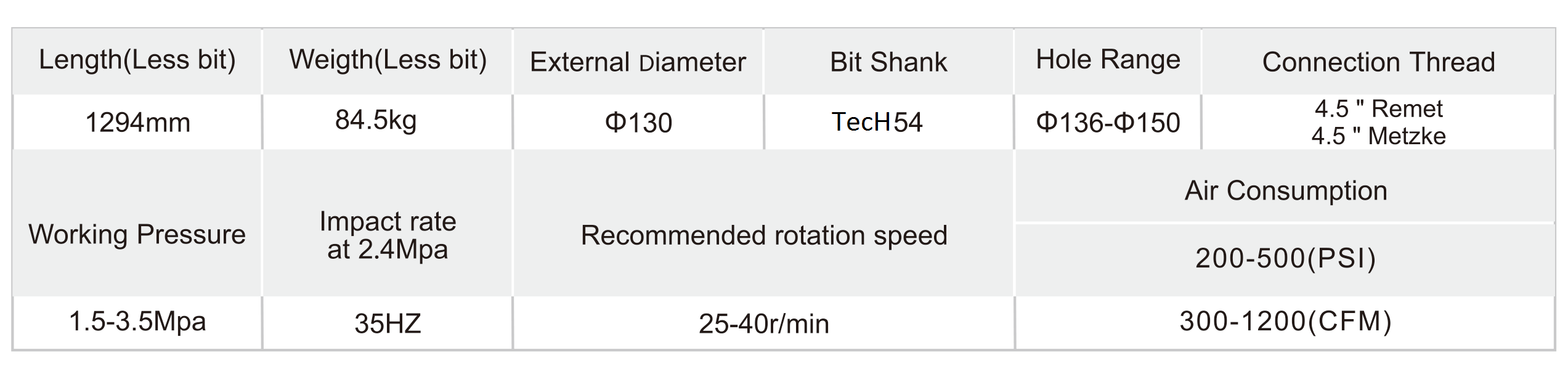

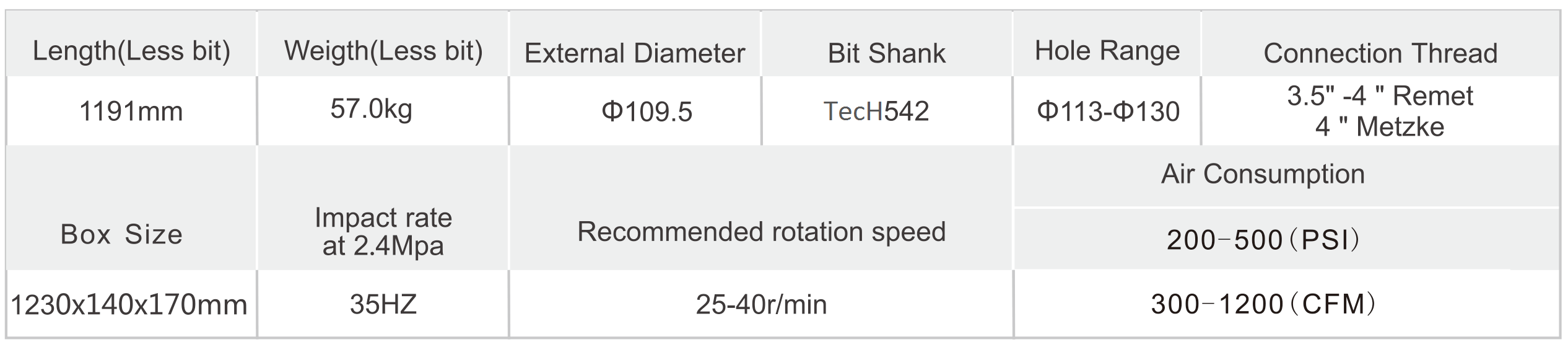

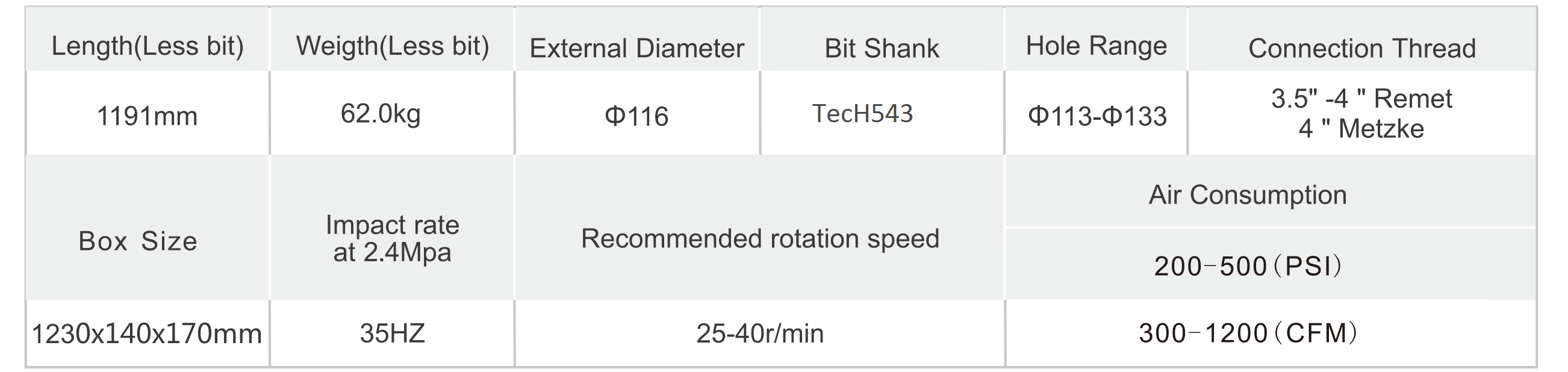

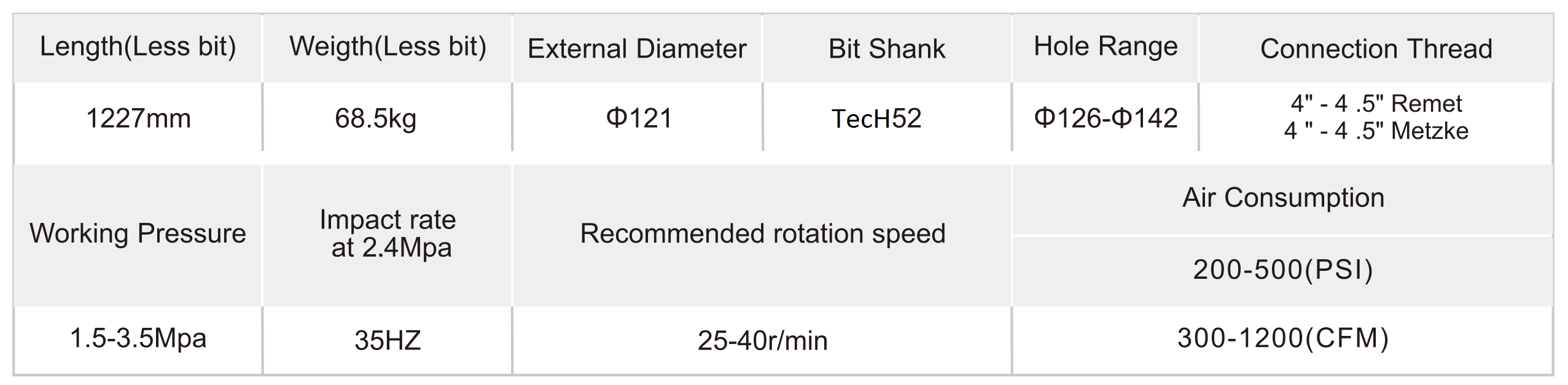

Technical Data & Air Pressure/Consumption Weight Chart

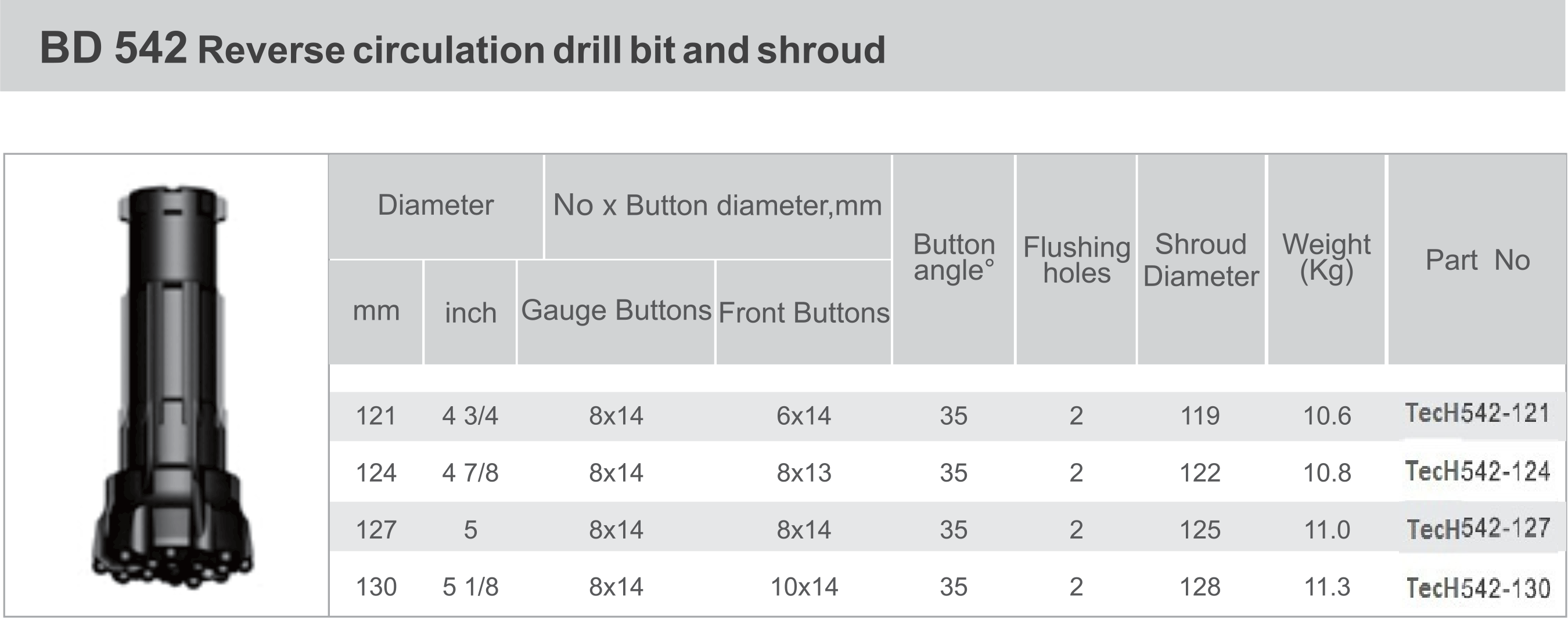

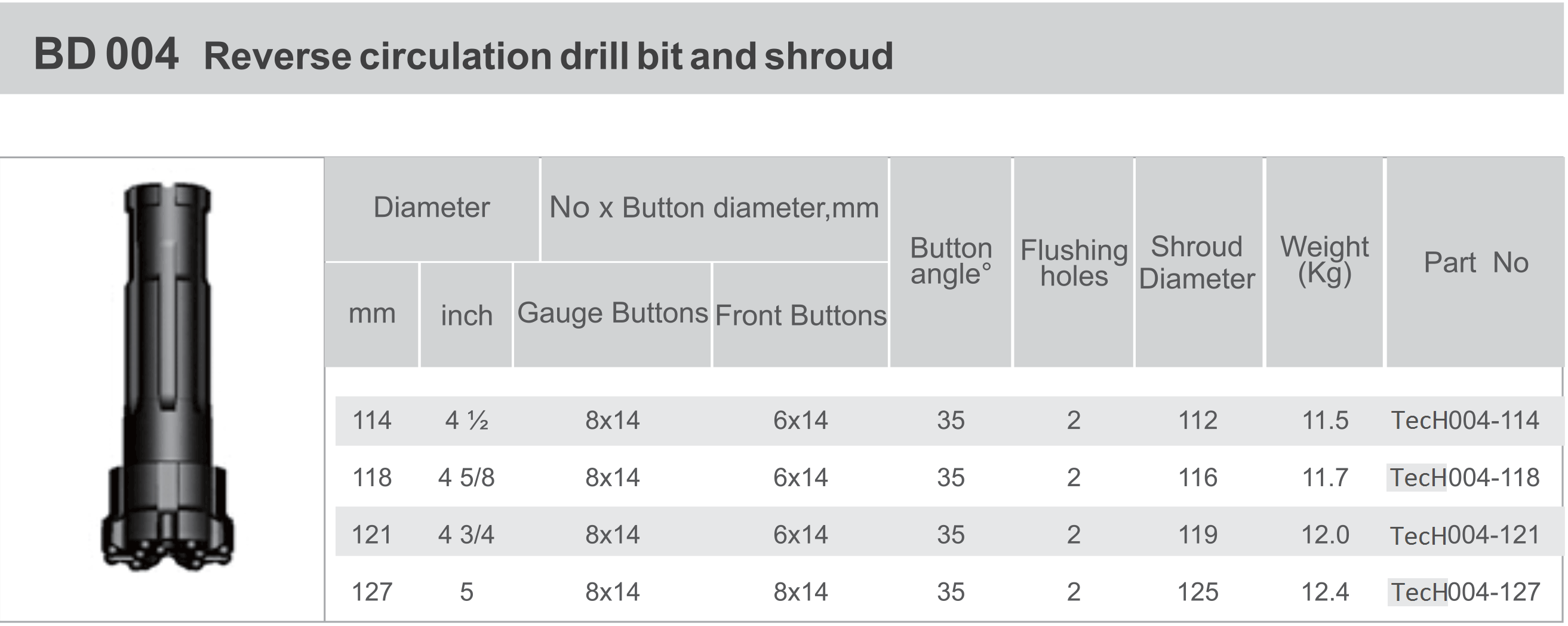

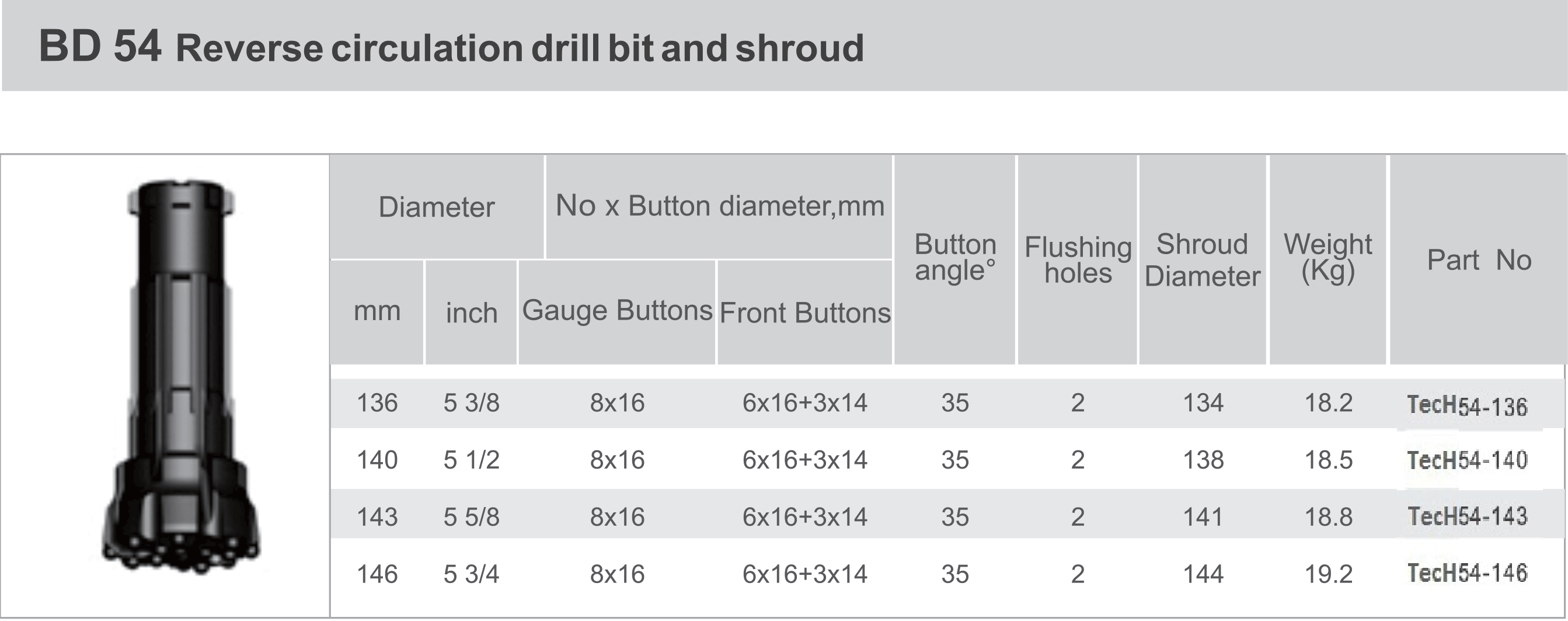

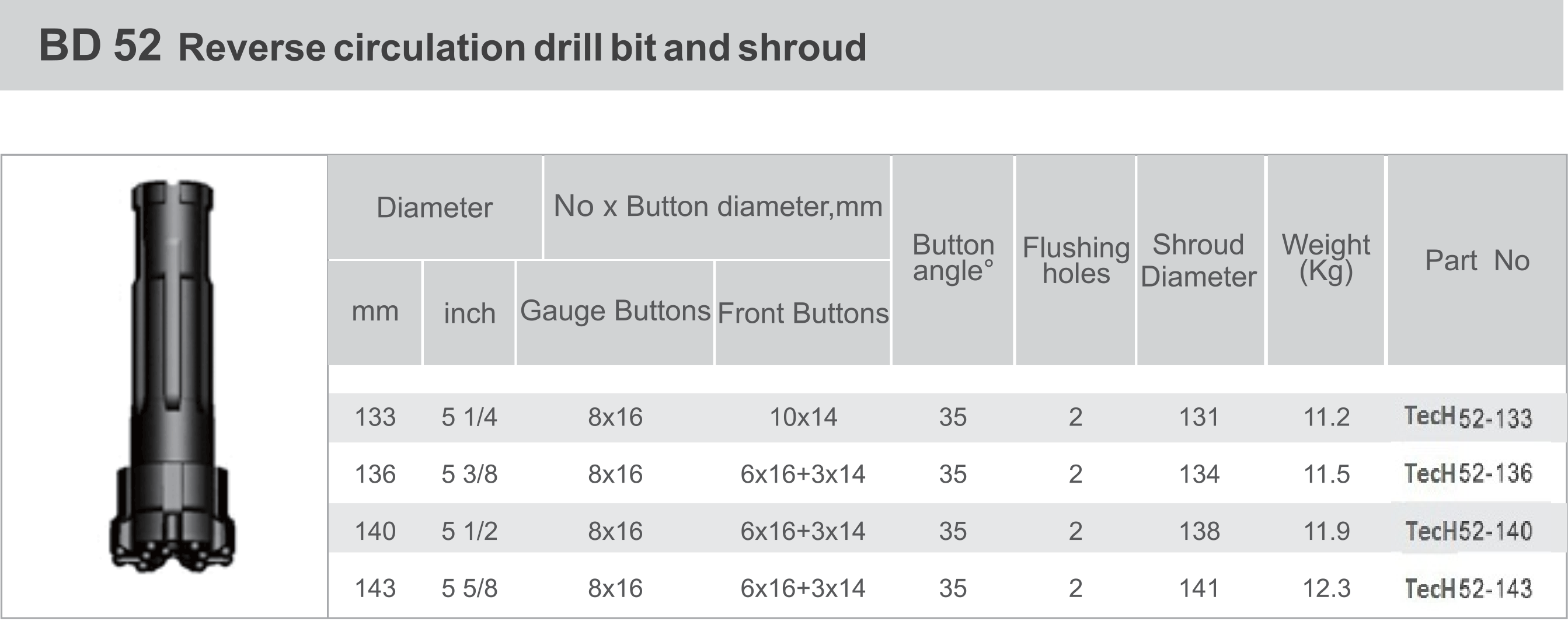

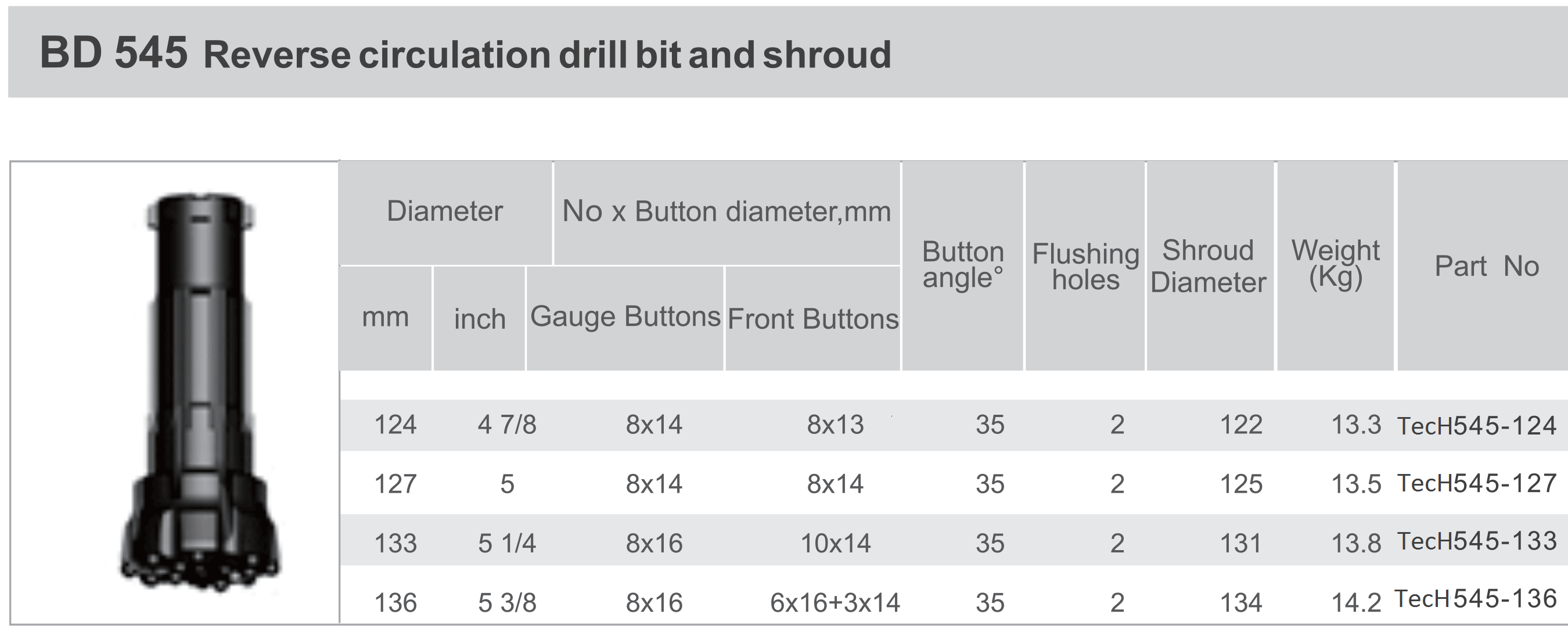

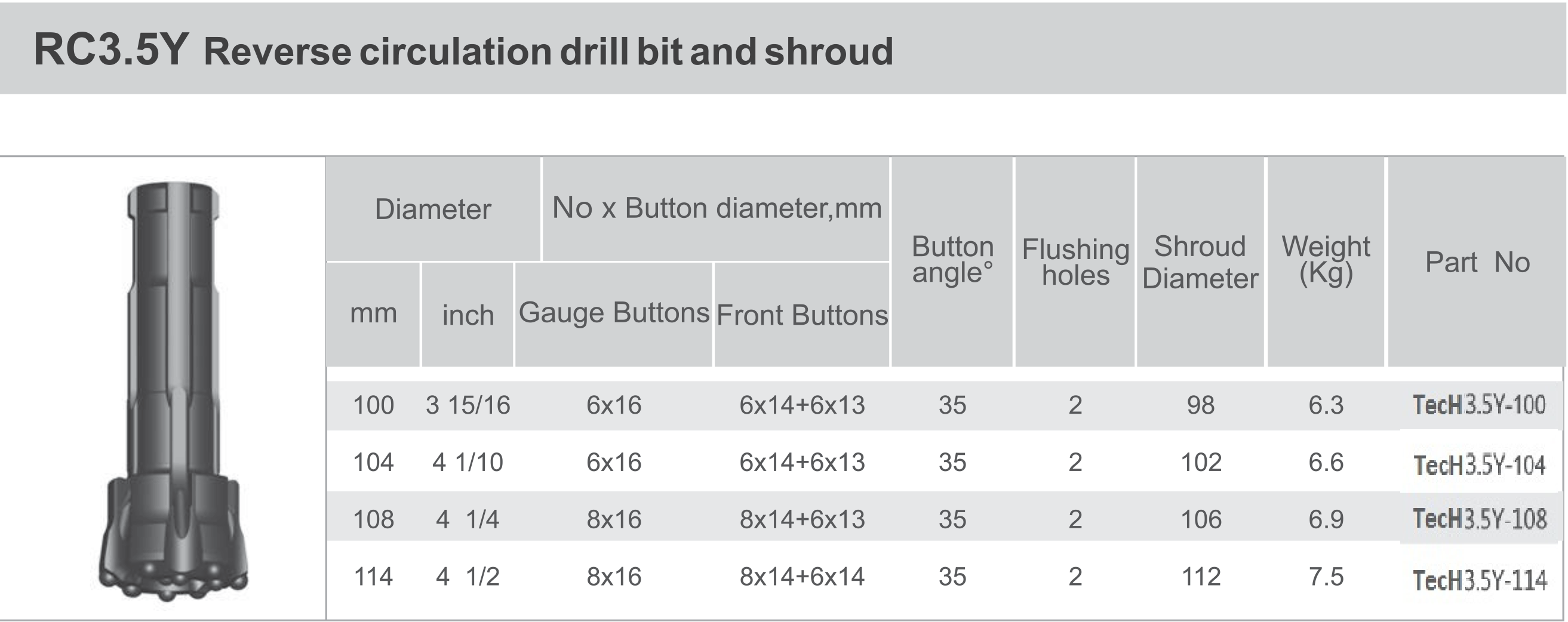

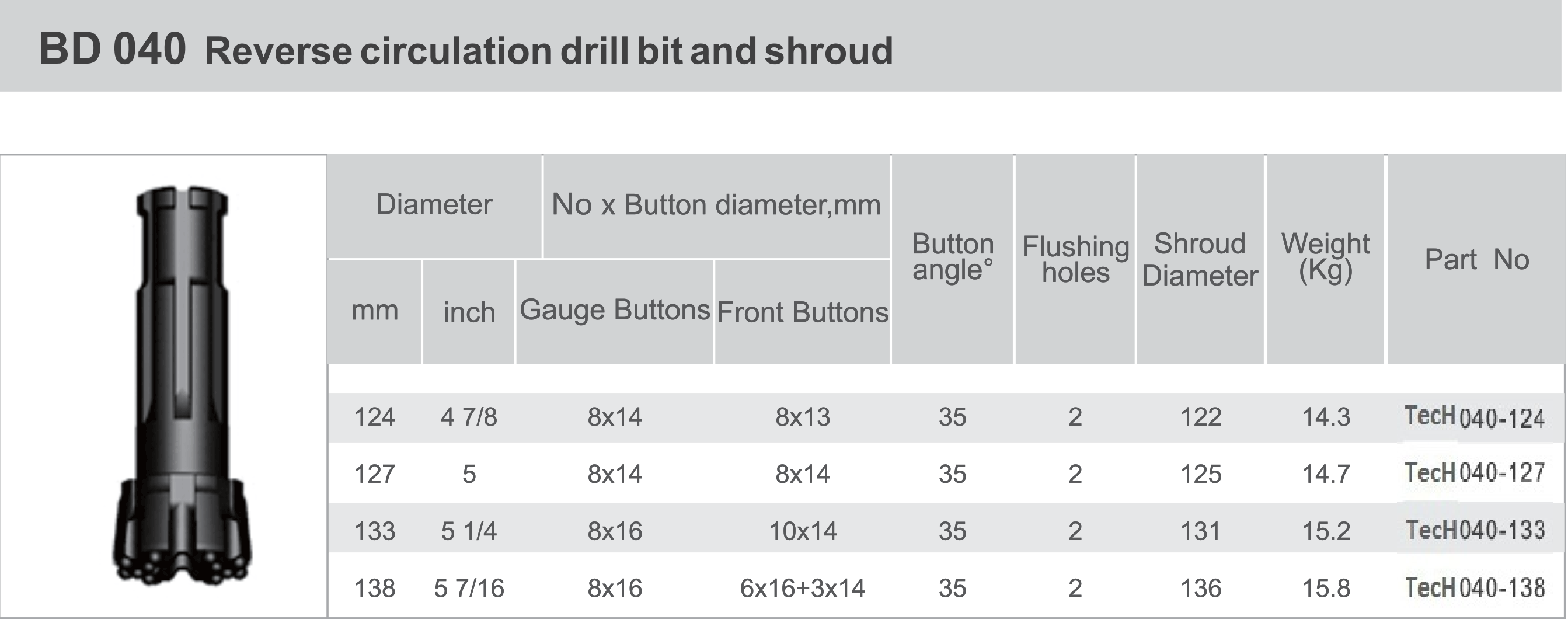

HRC Bits
HRC Bits
